BB-Series Hammers



If you're looking for a winning drill hammer you've come to the right manufacturer. Reliability and speed have come together under one roof with EDM's 'BB' series of hammers making them winners for drillers! These are the drilling hammers that you in the industry have been waiting for. You'll love the way these tools blast through your toughest rock. They are without a doubt some of the finest production hammers ever built. The performance of these hammers is unparalleled in today's market.

There are three hammers in the 'BB' series. The BB5 is a 5" hammer with a QL5 shank. The BB6 is a 6" hammer with a QL6 shank available in both standard OD and heavy duty. And last, but not least the BB8 has a QL80 shank. All three hammers have thread designs for easy joint breaking, valveless porting and a proven piston design. They are smooth operators in the field and very cost effective when an overhaul is needed.

BB5-Hammer

Features:

  • Twelve Spline Chuck (QL5 shank)

  • Valveless Porting (No Plastic in this tool)

  • Proven Piston Design (For Reliability)

  • Triple lead thread design for easy joint breaking

  • High Frequency for smoother operation

  • Cost Effective to Overhaul when needed

  • Made with US Steel

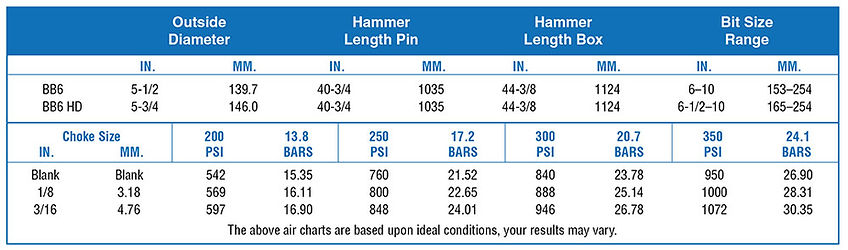

BB6-STD Hammer and BB6-HD Hammer



  • Reversible Case

  • Twelve Spline Chuck (QL6 shank)

  • Valveless Porting (No Plastic in this tool)

  • Proven Piston Design (For Reliability)



  • High Frequency for smoother operation

  • Triple lead thread design for easy joint breaking

  • Cost Effective to Overhaul when needed

  • Made with US Steel

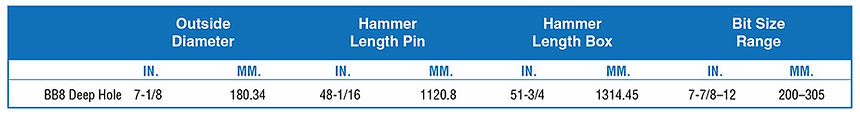

BB8-STD Hammer and BB8-Deep Hole Hammer (For Oil Field)

  • Multi-start thread design for easy joint breaking

  • Sixteen Spline Chuck (QL80 shank)

  • Valveless Porting (No Plastic in this tool)

  • Proven Piston Design (For Reliability)



  • High Frequency for smoother operation

  • Cost Effective to Overhaul when needed

  • Made with US Steel
